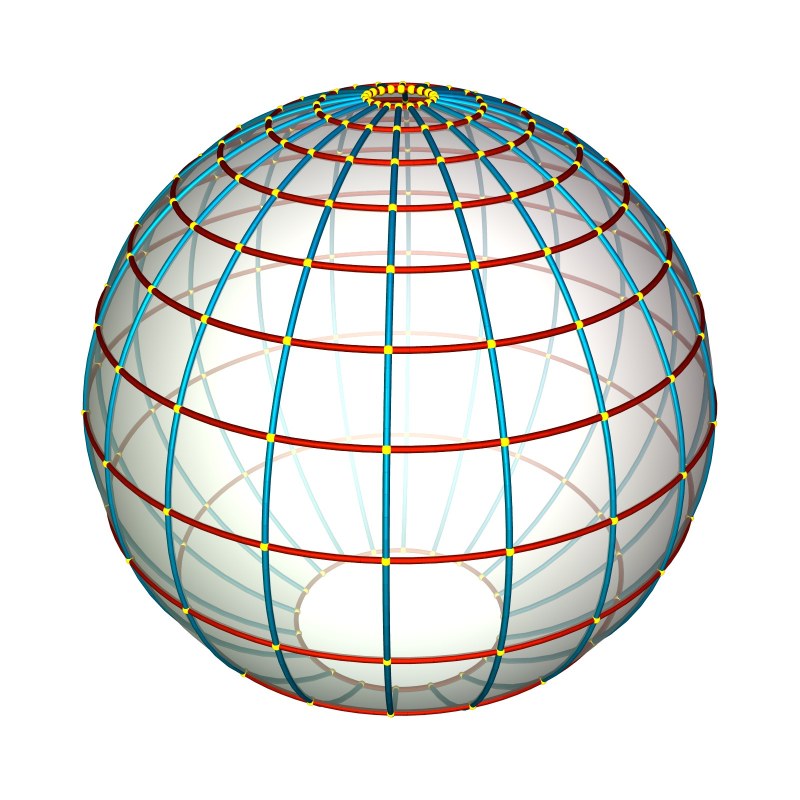

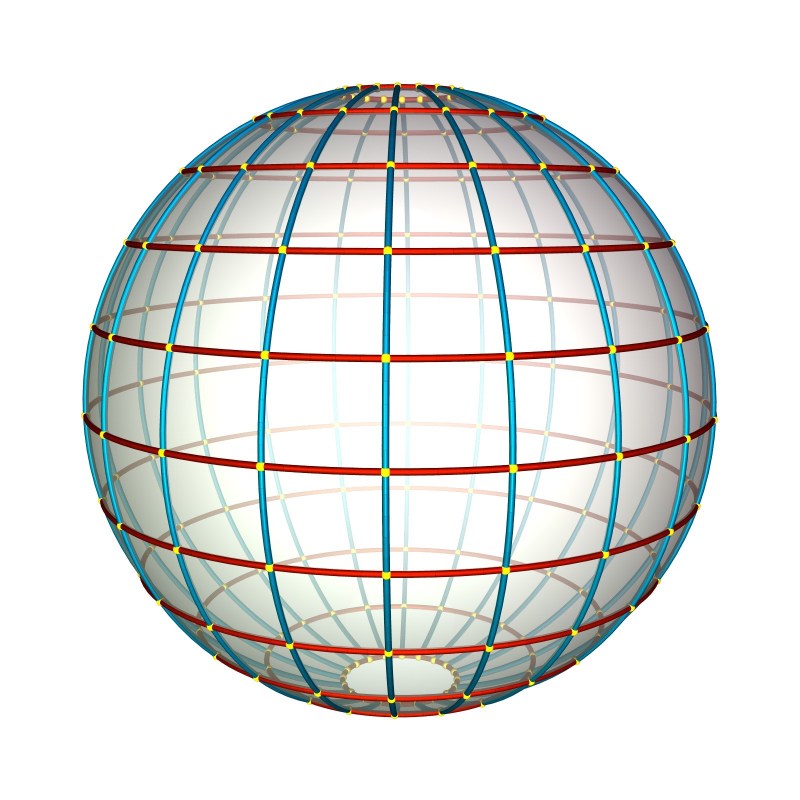

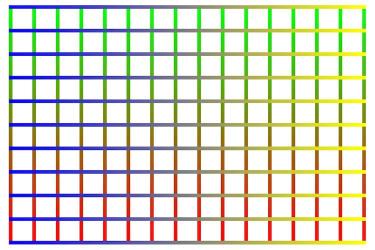

Unfortunately, the days are over when you could just ask the Magratheans to build you a planet to order. Let’s deal with what we have and deform it a little, continuing my little series of visualizing conformal maps. Here is what we have:


The easiest we can do is to shrink and expand the hemispheres, counteracting centuries of imperialism. Mathematically, this is just a multiplication like say f(z)= z/2.

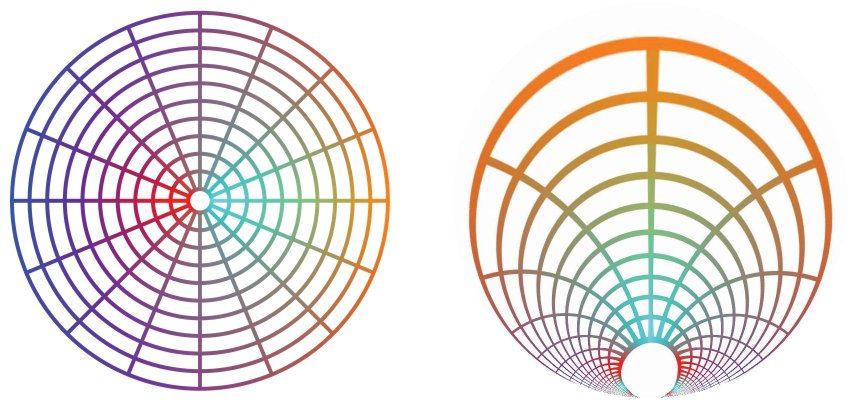

Curiously, translations like f(z)=z+1 have a much more dramatic effect, they move the north pole (which corresponds to 0) and keep the south pole (infinity).

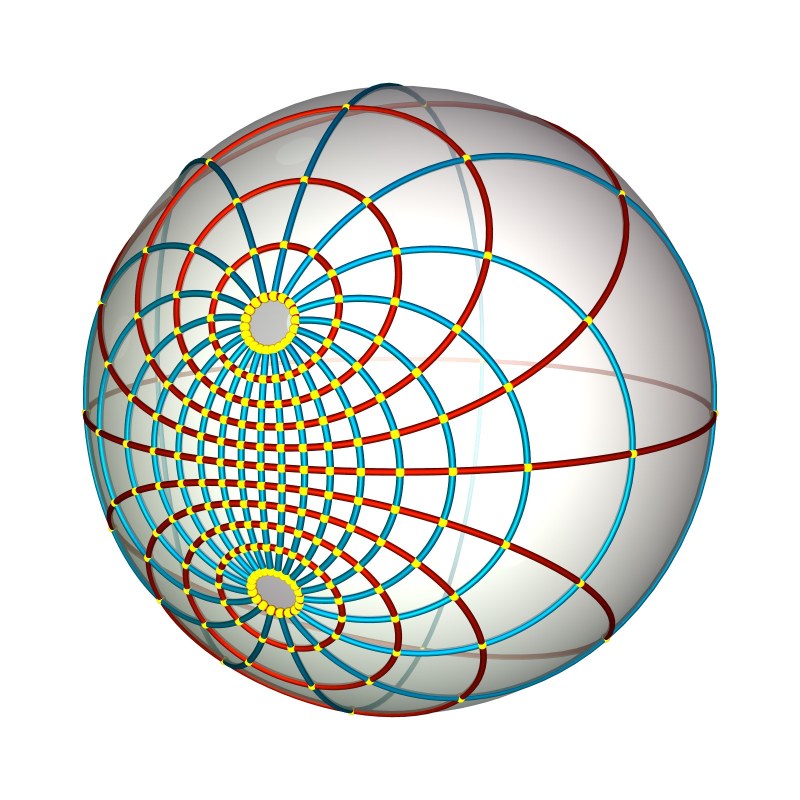

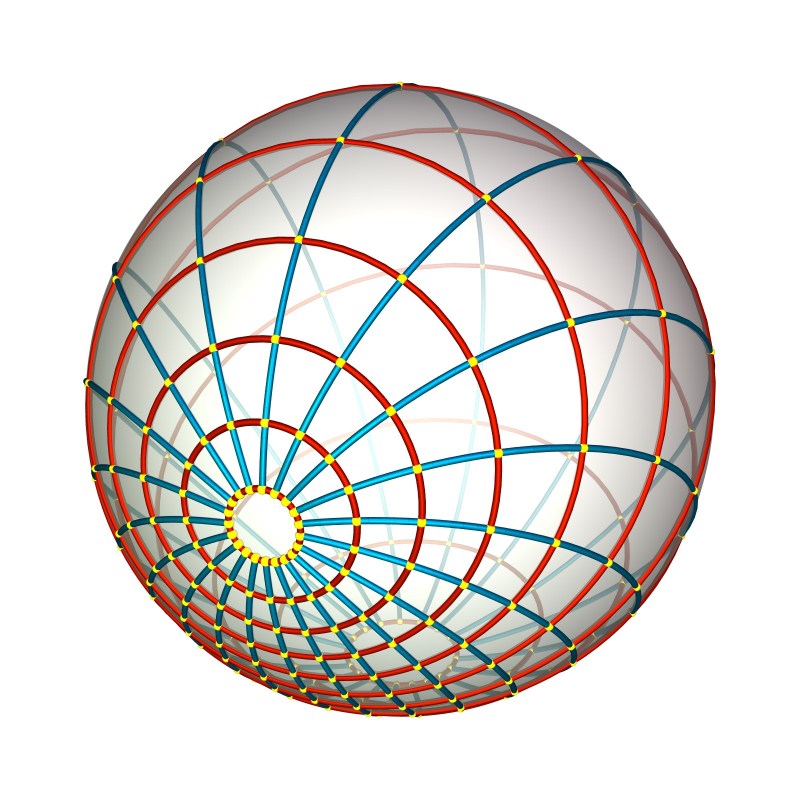

If we want to move both poles simultaneously and keep the equator where it is, we need Möbius transformations.

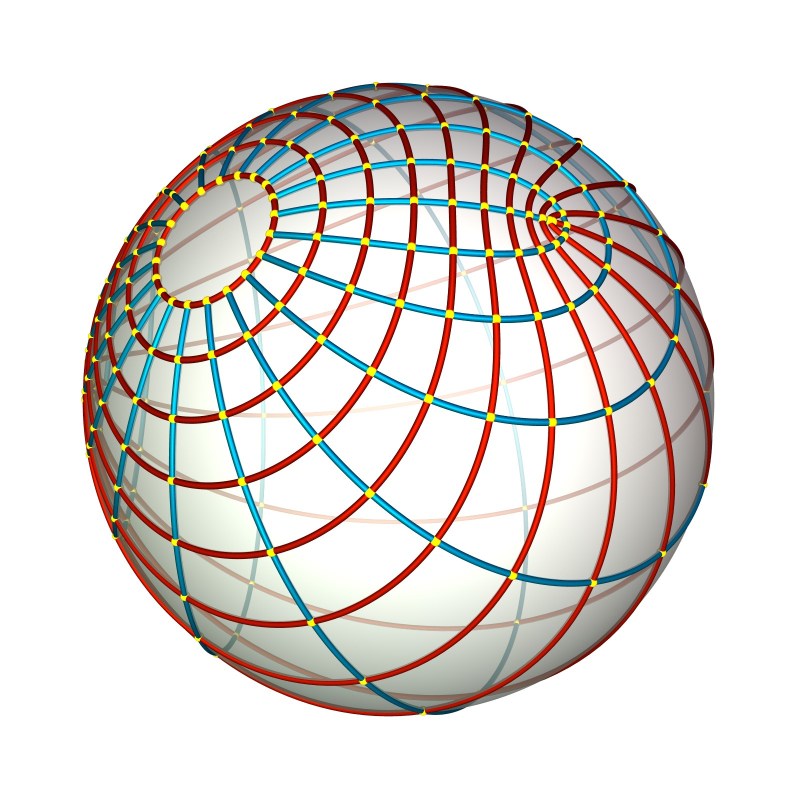

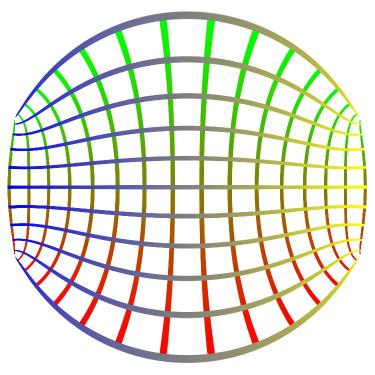

This is about as general as it gets with degree 1 maps. Here is a degree 2 map, f(z)=z+1/z:

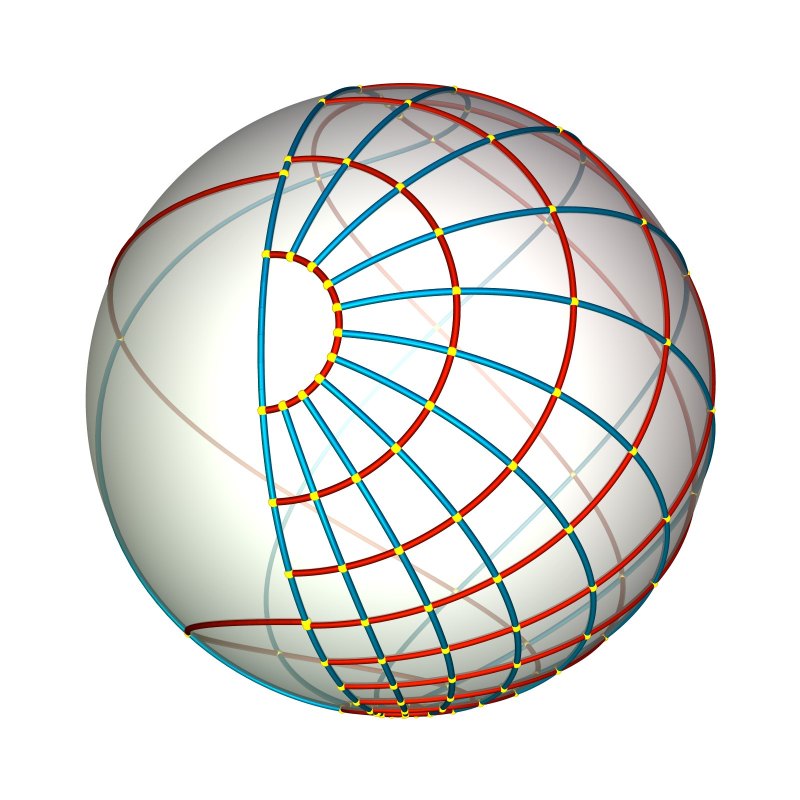

Both polar caps have been folded into one. From a quadratic map we would expect intersecting parameter lines. This doesn’t happen here because the map I have chosen is rather symmetric. To indicate what usually happens, below is the image of a hemisphere under the innocent map f(z)=(z+1)^2:


Around (Southern Illinois II)

DSC 3511

In the middle of the Midwest, there is the small College town Carbondale. The nearest airport is in St. Louis, two hours away by car, if you survive the trucks that rush towards Chicago. However, it is not just rolling hills and corn fields. There is Giant City State Park, which is not, as I was afraid, another amusement park.

DSC 3508

Instead, it is one of the best hidden gems of the midwest. The numerous trails take you through lush forests and along sandstone cliffs.

DSC 3411

Some of the boulders have a distinctive organic appearance, and you begin to wonder whether they could come alive… Also, everything seems to tilt in unexpected ways.

DSC 3455

Is it that these wall want to keep us out, or keep something inside?

DSC 3458

To be continued…

Beach Balls

Following Jack’s suggestion, let’s try to visualize holomorphic maps from the Riemann sphere to itself. As a reference, here is the Riemann sphere with polar coordinates, and on the right hand side its cylindrical projection.

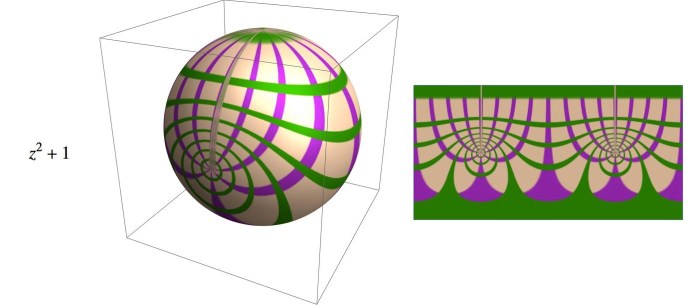

The preimage of this under a quadratic polynomial looks like this:

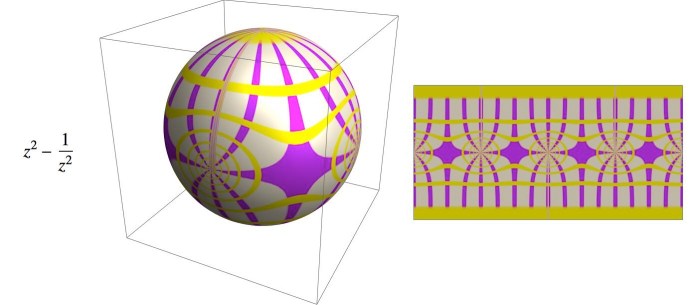

And here a rational function function of degree 4:


One can get quick images using uv-mapping, but there are some rendering artifacts I don’t know how to get rid of yet. Degree 5:

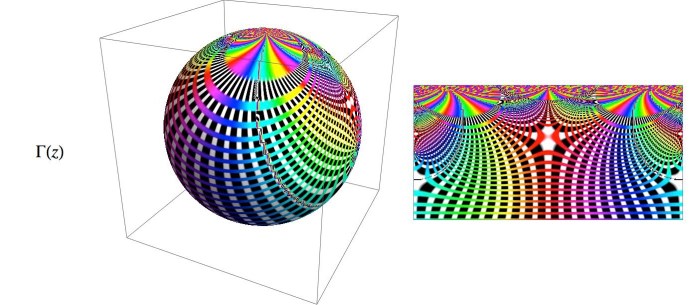

Finally, the Gamma function, which has an essential singularity at infinity.


Martha says their gypsum printer can print these in color. We’ll see, I hope.

Sacred Grounds Café (Southern Illinois I)

One of my little hobbies is to visit places that play a role in a book (or film) I like. This year, one of my favorite books so far has been John Burnside’s novel Ashland and Vine. Even though the author is Scottish, the book takes place in a generic Midwestern college town called Scarsville.

DSC 1547

The book is about a College student and an elderly Lady. I don’t like to write or read reviews, and in this case the title already is hint enough. It is a good book. We don’t learn much about the place, until a coffee place is mentioned with the uncommon (for a coffee place) name Sacred Grounds Café. Thinking about it, this is an excellent name for a coffee place, because it tells the customer that one is welcome to sit down for a while instead of just grabbing a quick coffee. In any case, I found the name odd. There are indeed real coffee places in the US with that name, and one of them is in Edwardsville, Illinois. Even better, it is also on Main Street, as in the book.

DSC 1539

I decided to pay the place a visit. Unfortunately, the staff didn’t know author or book, and the owner (who plays a role in the book, too), was not present.

The quiche with sweet potatoes and spinach was excellent.

DSC 1537

Spring Cleaning II

This is a continuation of my previous post about this game. Because it is impartial and the rules are simple, one can write a computer program that computes for a given position of dirt pieces the size of the equivalent Nim heap (which is also called its Grundy number or its nimber). Because this is computationally prohibitive, one does this for simple shapes, discovers patterns, and proves these. We did this for rectangles the last time. To warm up, we do it for L-shapes today. Here is. (5,3)-L:

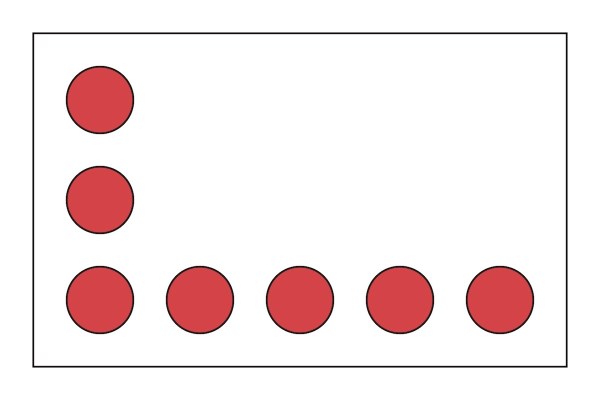

Sweep L53

The nimber of this position is 1, which means in particular that there is a winning move for the first player. You can for instance do vertical swipe in the second column, leaving the second player with two disconnected row/column of three dirt pieces each. From then on, we play symmetrically and win.

For the general (alb)-L, the nimbers are as follows:

a\b 2 3 4 5 6
2 0 4 4 0 3
3 4 1 0 1 0
4 3 0 3 0 3
5 0 1 0 1 0
6 3 0 3 0 3

In other words, the nimber of an L with legs at least 3 dirt pieces long behaves quite simple.
This is good, because if a player can easily memorize the nimbers of simple positions, and these nimbers are small, then the player can usually easily win against players who lack this knowledge.

But maybe all this talk about nimbers is just vain traditional mathematics, and there is an alternative way to understand this game and win easily, without any theory, just by being smart and tough?

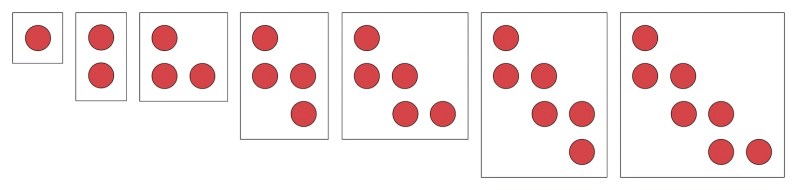

Let’s look at at another type of Spring Cleaning positions which I call zigzags. Below are the zigzags Z(1) through Z(7),


and here is the table of the first few nimbers:

n 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
nimber 0 0 1 2 0 1 2 3 1 2 3 4 0 3 4

Any pattern emerging? No? There is a solution: Whenever you have a sequence of integers you are clueless about, you had to the Online Encyclopedia of Integer Sequences, the best thing the internet has produced ever, and type it in.

It turns out that the sequence at hand is known as the sequence of nimbers of another impartial game which is called Couples are Forever. The rules are simple: The game is is being played with several piles of tokens. Both players take turns splitting any one pile of size at least three tokens into two piles. The game ends when no piles with more than two tokens are left. This impartial game, beginning with a pile of size n, has (with a shift of two) the same nimbers as the zigzags in Spring Cleaning.

Moreover, for Couples are Forever, the nimbers have been computed into the millions, and no pattern has been found whatsoever. It is not even known whether the nimbers remain bounded.


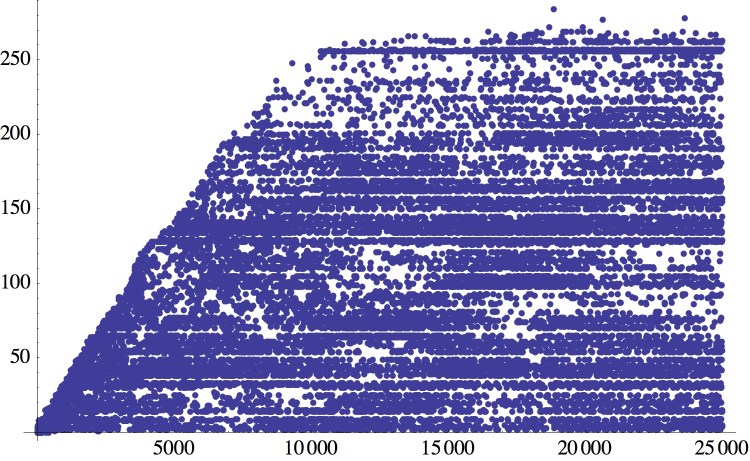

Above is the graph for the nimbers of Couples are Forever (or zigzags in Spring Cleaning) for pile sizes up to 25,000. At first (up to 10,000 or so), it looks like the nimbers are growing linearly, but then they appear to even out. Nobody knows. This is one of the famous open problems in combinatorial game theory.

It tells us also that there won’t be a tough&smart solution for this game, or for Spring Cleaning, or for reality. Which is a good thing.
