The Library of Babel II

Today we are taking the 2-dimensional floor plans of the Library of Babel  to the third dimension. The simplest way is to use a single floor plan and copy it for every level of the library. For instance, last time’s finite hexagon becomes a daunting infinite tower, at least in our imagination.

Babel hex 01

One could also do the same with several separate hexagons, but the resulting library would consist of several buildings, which, while not explicitly prohibited by Borges, seems unacceptable.

Doublyplus 01

But there is another possibility. For instance, using the arrangement of hexagons in horizontal lines, and repeating them vertically (as on the left above), but then, on the second floor, using the same floor plan albeit rotated by 90º (as in the middle), and then repeating this periodically, we arrive at a single building where it is sometimes necessary to climb up, walk across, and then down again to reach a different room on the same floor.

Nearby places can sometimes be terribly far away.

In the double floor plan up above on the right we see that this can be done by aligning the vestibules in a square pattern, leaving star-shaped Voids. Below is a partial view of this magnificent library:

Babel3The condition that the staircases in the vestibules extend infinitely in both directions is quite limiting, even if one doesn’t require that each staircase can be reached at every floor. A good strategy for designing even more complicated libraries is to begin with a floor plan that includes hexagons and squares, and use on each floor a different subset of these squares and hexagons as vestibules and galleries. For instance, we can start with this Archimedean tiling that has large dodecagonal Voids:Archi2 01



One individual floor then could look like this, seemingly giving each gallery three exits to vestibules with staircases, one of which, however, will be blocked off by a bookshelf on two of its sides:

Third 01

This floor plan will be rotated by 120º on each subsequent floor (about the center of one of the dodecagonal Voids), creating a single labyrinthian library.

Here is a deliciously maddening view into the resulting skeleton of this library. I haven’t closed off the inaccessible staircases yet, so please watch your step.

Babel5

Happy are those of us who can get lost in a single book like in this Borgesian library.

The Library of Babel I

In the story The Library of Babel, Jorge Luis Borges describes a library whose design follows near axiomatic principles:

It is composed of an indefinite, perhaps infinite number of hexagonal galleries. In the center of each gallery is a ventilation shaft, bounded by a low railing. From any hexagon one can see the floors above and below—one after another, endlessly. The arrangement of the galleries is always the same.Babel2

One of the hexagon’s free sides opens onto a narrow sort of vestibule, which in turn opens onto another gallery, identical to the first—identical in fact to all. […] Through this space, too, there passes a spiral staircase, which winds upward and downward into the remotest distance.

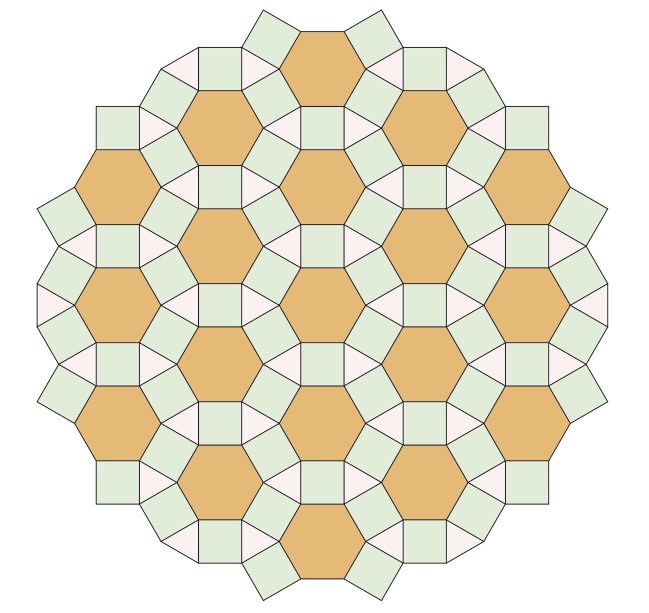

If we remove all the cosmetics, we might end up with a design like the above, clearly unsatisfactory. Nothing is said about the underlying geometry of the library, Euclidean, spherical, hyperbolic, or even more esoteric. We will assume that the universe is Euclidean, for now, because this is still interesting enough. In this first post I will discuss the floor plans of a single floor. The combination of hexagonal galleries and square vestibules suggests that we are looking at floor plans that can be derived from this Archimedean tiling of the plane:

Babel 1

Of course the triangles will be Voids, and we have too many square vestibules. We get one more clue (or axiom) from Borges: Twenty bookshelves, five to each side, line four of the hexagon’s six sides […]

This means that each gallery has just two vestibules where one can enter or exit. As all galleries are identical, this leaves us with three distinct possibilities how a gallery can look like.

Babel straight 01

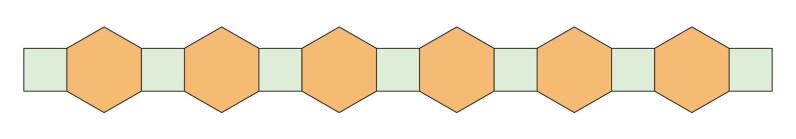

If we assume that the vestibules are placed at opposite sides of a gallery, our floor plan will necessarily look like the one above (which is used in the top image, too), representing a favorite labyrinth of Borges, the line (!). In the other extreme case, when the vestibules are at adjacent sides of each hexagon, there are two possible floor plans:

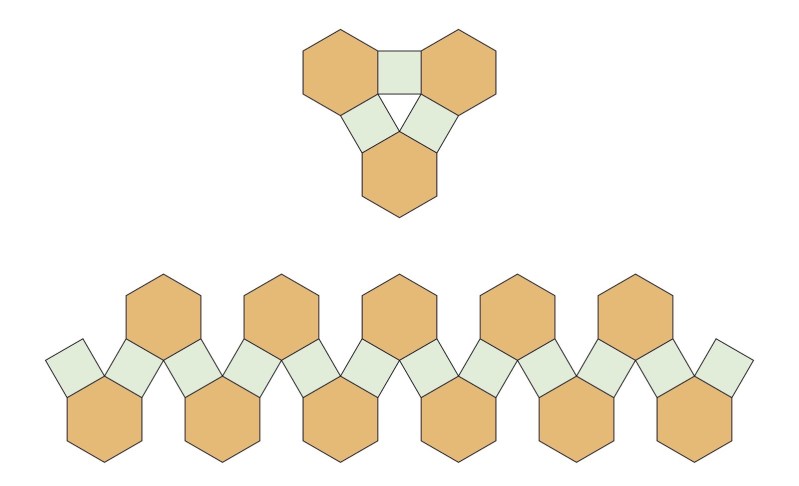

Babel 60

As a single floor plan, neither looks exciting, but we’ll see. There is one more option when between the two exits to the vestibules there is just one wall with shelves, like so:

Babel 120a 01

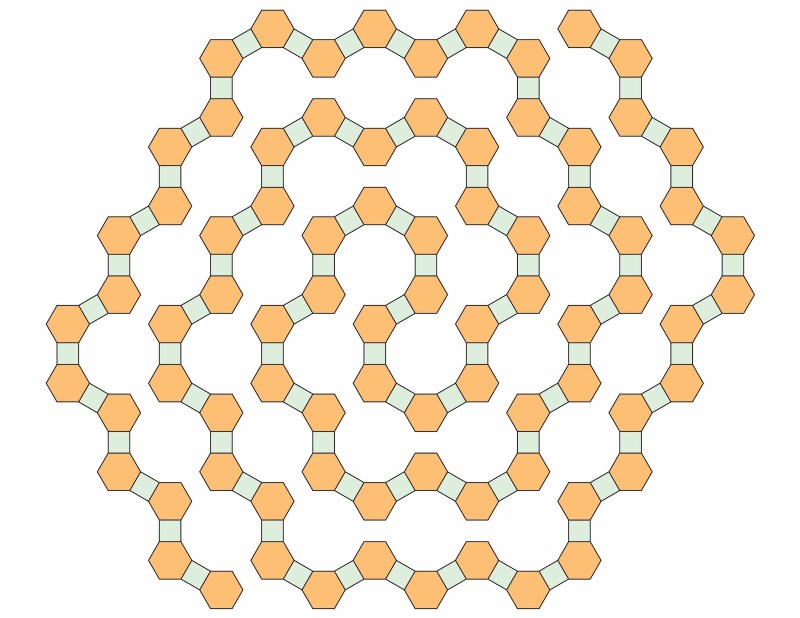

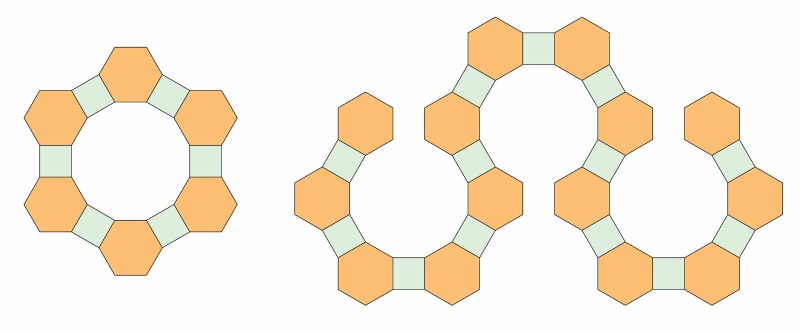

And fascinatingly, this last options allows for much more intricate floor plans, like this infinite double spiral:

Babel spiral 01

Next time we will investigate how the connections between different floors makes the life of the librarians even more exciting.
